Brand New Arriving for 2024!

*Please note Full Vehicle Specification and pictures are for illustration only, actual vehicle specs may vary, please confirm with SHMCC*

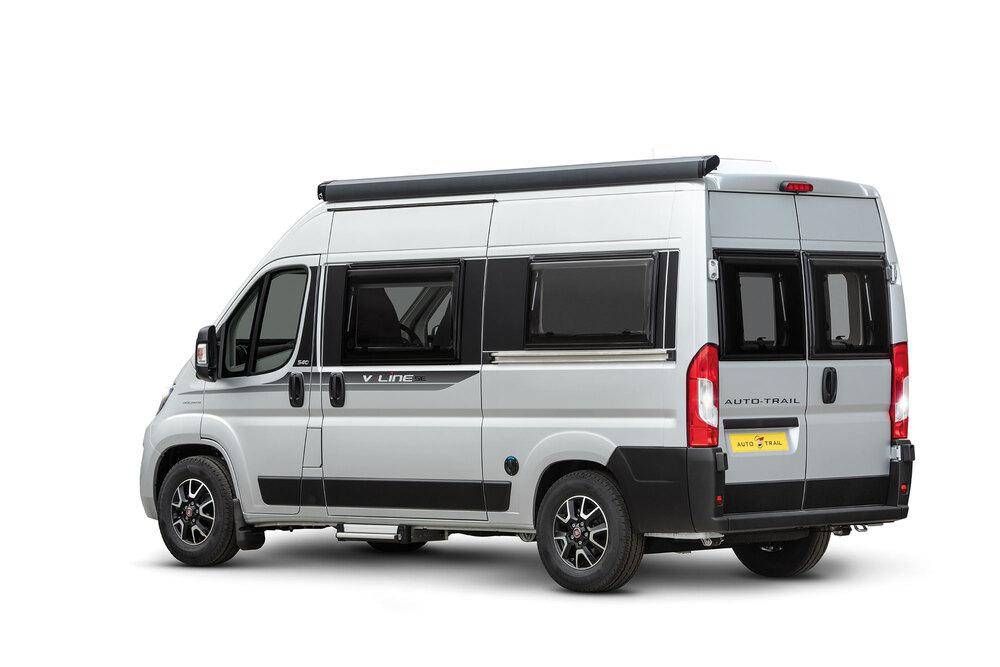

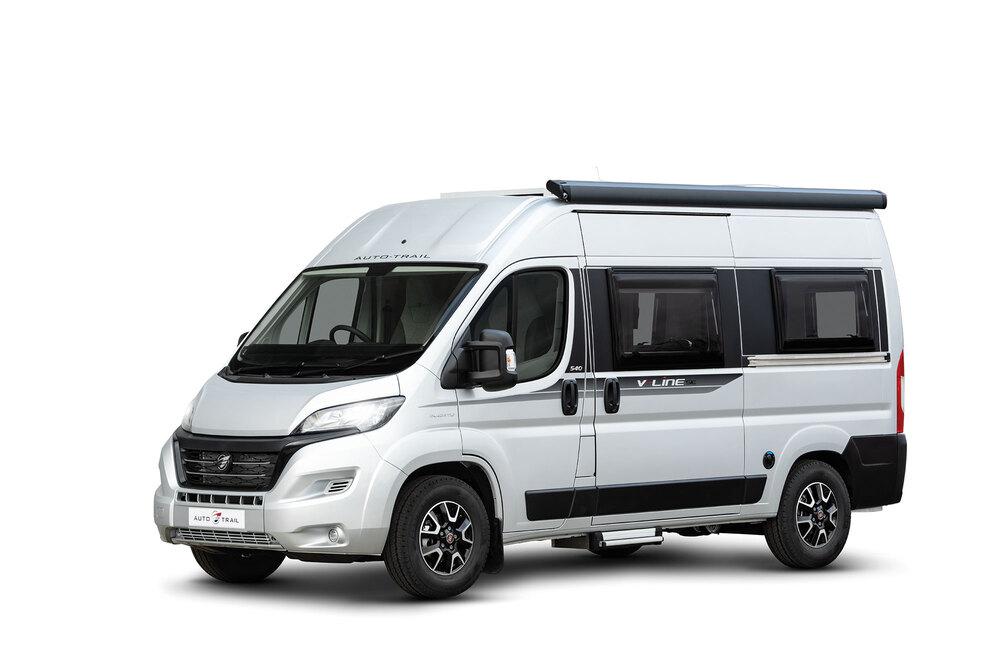

Auto-Trail V-Line 540SE

140bhp – 6 Speed Manual – Grigio Grey

This Auto-Trail motorhome provides 2 berth accommodation, with 2 belted seats (including drivers). With accommodation provided through a rear lounge conversion. While the kitchen benefits from a 3-burner gas hob, combined oven & grill, microwave, 3-way fridge/freezer and sink. Also, the bathroom has a combined washroom with shower, sink, vanity, and cassette toilet.

In conclusion, this motorhome has 240v mains electricity connection and Whale hot water and heating. Featuring pleated blinds and fly screens fitted to the opening habitation windows. Overall, this motorhome benefits from a solar panel, tv aerial and awning. For more features, please see below.


The Auto-Trail V-Line 540 SE is one of Auto-Trail’s most compact campervan layouts, yet packs in a separate washroom, rear lounge and galley kitchen. Ideal for spontaneous trips for just the two of you, this versatile Fiat campervan also doubles as an extra vehicle that can handle everyday tasks as well as longer road trips with ease.

Built on the updated Fiat Ducato Series 8, Euro 6D chassis and featuring a 140bhp engine as standard, the V-Line 540 is a small, but perfectly formed campervan.

Want to know more? The new 2024 V-Line 540 SE specification is below to provide you with all the finer details of this compact yet spacious motorhome.


Body Styles

  • Cab-Plus, increased open space within the cab headroom
  • Upgraded to Panoview, a large panoramic roof skylight within the cab headroom

Engine & Chassis

  • Built on a Fiat Ducato Chassis with a wheelbase measuring at 3450mm
  • 4-Cylinder, 140bhp MultiJet 3 Euro 6D Engine with a max torque of 350NM@1400RPM
  • 6-Speed Manual Gearbox
  • Available in Grigio Grey
  • Including an intercooler
  • Electronic brake force distribution (EBD)
  • Variable power assisted steering

Weight & Dimensions

  • With a height of 2.68m, length of 5.41m and width of 2.27m
  • A fresh water capacity of 58 litres and wastewater capacity of 58 litres.
  • Fuel Tank capacity of 75 litres
  • A Maximum gross weight of 3500kg, max gross train weight of 6000kg and a mass in running order of 2875kg
  • Tyres sized at 225/75 R16CP
  • An awning sized at 3.25m

Maximum Bed Measurements

  • With a maximum of 2 berths available as;
    • Rear lounge conversion measuring at 1.86m x 1.32m

Floor Coverings & Upholstery

  • Including 2 scatter cushions
  • Featuring Violet upholstery, only available on the V-Line SE range
  • Cushioned vinyl flooring, with bound-edged removable carpets

Kitchen Features

  • Stainless steel sink
  • 3 burner gas hob
  • Combined oven and grill
  • 3-way fridge with integrated freezer
  • 800w microwave with a brushed aluminium surround
  • Cutlery storage
  • Chrome taps
  • Domestic style worktops

Washroom Features

  • Combined washroom with fold away basin and shower area
  • Chrome taps
  • Large mirror
  • 12v electric flush cassette toilet

Living room Features

  • Moyet oak solid plywood interior furniture
  • Concealed positive catches to aircraft style upper locker doors
  • Positive catches with flush fitting handles to all lower cupboards and drawers
  • Thermal pleated blinds and fly screens all opening windows
  • Fly screen fitted to the sliding habitation door
  • Anti rattle dampers fitted to all drawers
  • USB charging point

Cab Area Interior Features

  • Fully upholstered, height adjustable, driver and passenger captain’s seats with twin armrests
  • Bottle/cup holder and USB charging point to cab area
  • Air-con cooled water bottle storage
  • High level instrument cluster
  • Steering wheel controls for radio
  • Gear shift indicator on dashboard
  • Colour touchscreen DAB radio with Aux/USB/iPod connection and Bluetooth handsfree system
  • Motorhome specific Western European satellite navigation system
  • Colour reversing camera integrated into touchscreen head unit
  • 21.5” Avtex smart tv
  • Cab air conditioning
  • Multi-function trip computer
  • Removable bound edged cab carpets
  • Storage pockets in both cab doors
  • Pleated cab blinds to windscreen and passenger/driver windows
  • Colour coded air vents to dashboard
  • Front speakers fitted to cab doors
  • Soft touch roof and side panels
  • Ventilated bed bases for extra comfort
  • Auto-Trail Umbrella

Water & Gas

  • Fresh & waste water tank gauge with a digital display
  • Pressurised water system
  • Large bore fresh and waste tank outlets
  • Dedicated service area for water pump and gas shut-off valves

Electrical & Gas Features

  • My Auto-Trail online portal
  • 12v LED Lighting
    • Under locker lighting
    • Recessed, ambient over locker lighting
    • Reading lights
  • 230v sockets
  • Coaxial tv aerial, 12v and 230v socket
  • Engine battery condition indicator
  • 2x 12v sockets to cab area
  • Intelligent charging system with digital control panel
  • RCD unit
  • Whale heat air space and Expanse water heating, with the easy to use heat control panel. A chassis mounted system, creating valuable storage and extra living space.
  • All gas appliances are fitted with FFD, a Flame Failure Device
  • 25 Litre underslung gas tank
  • Auto-Trail ‘Connect’, a Thatcham category 7 approved tracking subscription. To be purchased through the ‘’ website

Insulation & Strength

  • Warranties (T&C’s Apply)
    • 5 Year warranty for conversion
    • 5 Year body construction integrity warranty
    • 2 Year warranty for Fiat chassis
  • Grade 3 insulation
  • Galvanised external body panels
  • Insulated side walls using heat reflective layered insulation
  • Insulated and integrated vehicle services

Exterior Style & Features

  • Low level side protection rubbing strips
  • Colour coded front bumper
  • Black exterior wind out awning
  • Adjustable, electrically operated door mirrors
  • Electrically operated external step
  • 16” Fiat alloy wheels, including a steel spare wheel
  • Cost option upgrades
    • Bike rack for 2 bikes
    • Fixed flange fully approved tow bar and electrics

Storage & Access

  • Integrated shelf storage

External Lighting

  • LED Lighting
    • Daytime running lights to headlamps
    • Exterior awning light
  • High powered adjustable headlights incorporating daytime running lights
  • Highly visible additional side indicators integrated within exterior mirrors
  • 3rd High level brake light


  • 1x Leisure battery at 75AH
  • 100w solar panel

Visibility & Ventilation

  • Electrically operated cab windows
  • Thermal pleated blinds and fly screens to all opening habitation windows
  • Fly screen fitted to the sliding habitation door


  • Cruise control with speed limiter
  • ABS braking with disc brakes to front and rear
  • Central locking to all doors
  • Engine immobiliser for Fiat
  • ECWVTA compliance to all relevant EU standards
  • National Caravan Council Approved
  • Spare wheel (steel) with jack and wheel brace
  • Driver & passenger airbag
  • Smoke alarm / C02 alarm
  • Fire extinguisher

Upgrades Fitted

  • Panoview, a large panoramic roof skylight within the cab

Full Vehicle Specification may vary. Please Note pictures are for illustration only, actual vehicle specs may vary, please confirm with SHMCC.
