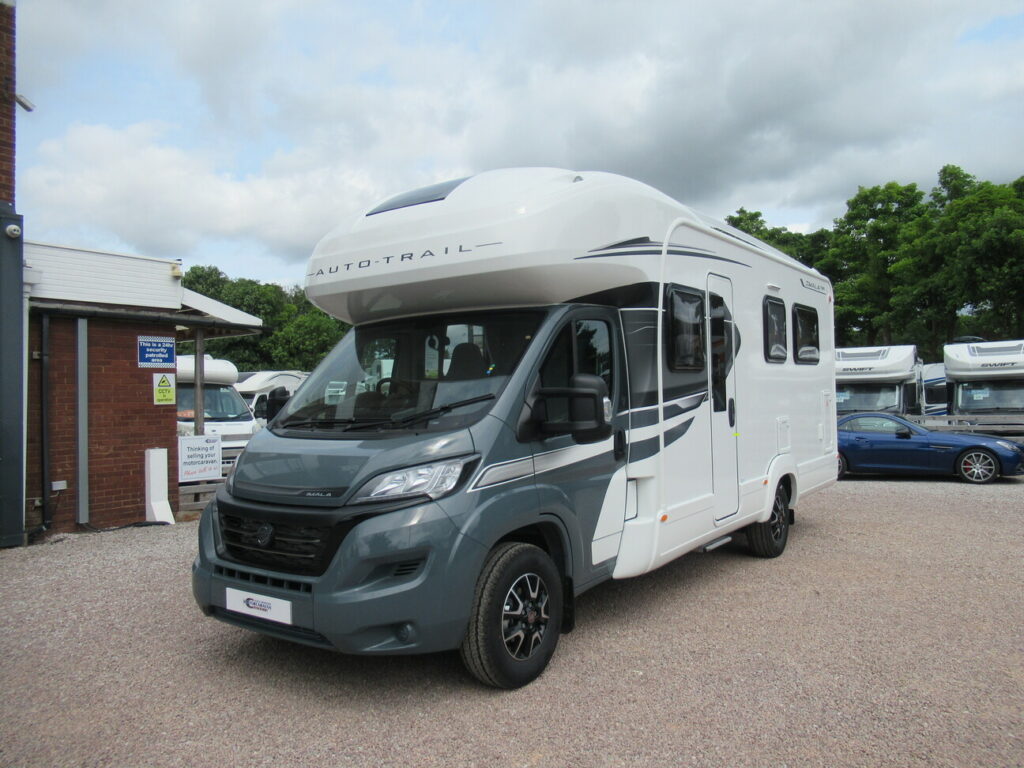

Auto-Trail Imala 730 Hi-Line

140bhp – 6 Speed Manual – Lanzarote Grey

This Auto-Trail motorhome provides 6 berth accommodation, with 4 belted seats (including drivers). With accommodation provided through an over cab bed, island bed and front lounge conversion. While the kitchen benefits from a dual fuel hob, separate oven & grill, microwave, 3-way fridge/freezer and sink. Also, the bathroom has a separate shower washroom with shower, sink, vanity, and cassette toilet.

In conclusion, this motorhome has 240v mains electricity connection and Truma hot water and heating. Featuring pleated blinds and fly screens fitted to the opening habitation windows. Overall, this motorhome benefits from a solar panel, half sized garage and media pack. For more features, please see below.


Sleep in total comfort thanks to a fixed rear island bed in the 2024 Auto-Trail Imala 730, which can be partitioned off from the rest of the motorhome to create your own private en-suite bedroom. A combination of his and hers wardrobes as well as aeroplane style overhead lockers provides plenty of storage space, and there is also a rear storage locker with external access for larger items. To the front of the Auto-Trail Imala 730 is also a front lounge which makes use of the swivelling captain’s chairs. Whether you choose a standard Imala 730 version or the high bed cost option with extended storage underneath, you can be sure you’re getting a high-specification motorhome built to perfection by expert craftsmen.

Built on the ever popular Fiat Ducato Euro 6D chassis and featuring a 140bhp engine as standard, the Imala 730 will be equipped for the steepest of mountain passes.

Want to know more? The 2024 Imala 730 specification is below to provide you with all the finer details of this compact yet spacious motorhome.


Body Styles

  • Available as a Hi-Line coach built with an over cab sleeping area and skyline panoramic opening window

Engine & Chassis

  • Built on a Fiat Ducato Chassis with a wheelbase measuring at 4035mm
  • 4-Cylinder, 140bhp MultiJet 3 Euro 6D Engine with a max torque of 350NM@1400RPM
  • 6-Speed manual
  • Available in Lanzarote Grey

Weight & Dimensions

  • With a Hi-Line height of 3.16m, length of 7.25m and width of 2.35m
  • A fresh water capacity of 135 litres and wastewater capacity of 85 litres.
  • Gas bottle storage for 1x 6kg & 1x 13kg Calor gas propane bottles
  • Fuel Tank capacity of 60 litres
  • With a maximum front axle loading of 1960kg and a max rear axle loading of 2500kg
  • A Maximum gross weight of 3650kg, max gross train weight of 4900kg and a mass in running order of 3190kg
  • Benefiting from a max towing weight of 1250kg
  • Tyres sized at 225/75 R16CP

Maximum Bed Measurements

  • With a maximum of 6 berths through the Hi-Line measuring as;
    • Over cab bed (Hi-Line only) measuring at 1.89m x 1.18m
    • Island bed measuring at 1.34m x 1.86m
    • Front lounge conversion measuring at 2.17m x 1.22m

Floor Coverings & Upholstery

  • Including 2 scatter cushions
  • Featuring Imogen luxury upholstery
  • Cushioned vinyl flooring, and bound-edged removable carpets

Kitchen Features

  • Flush fitting 4 ring hob, 3x gas and 1x 800w electric
  • Full oven / Grill and pan store
  • 96 litre fridge with removable freezer compartment
  • Fully fitted 800w microwave
  • Cutlery storage
  • Inset sink with flush fitting glass lid

Washroom Features

  • Domestic style bathroom taps, shower head and controls
  • Fully enclosed seamless shower cubicle
  • Blown air heating outlets to washroom area
  • Large mirror
  • 12v electric flush toilet with removable cassette on wheels

Living room Features

  • Easy access to bed boxes
  • Moyet oak solid plywood interior furniture
  • Two tone upper locker doors with chrome inserts
  • Pleated fly screens and blinds to all opening habitation windows
  • Free standing table
  • Metal rollerball drawer runners
  • On the move heating with monocontrol CS regulator with integrated crash sensor

Cab Area Interior Features

  • Fully upholstered, height adjustable, driver and passenger captain’s seats with twin armrests and swivel seat base
  • Bottle/cup holder and USB charging point
  • Air-con cooled water bottle storage
  • Cab door speakers x2
  • Cab air conditioning
  • Multi-function trip computer
  • Pleated blinds to cab windows
  • Folding tablet/smartphone holder to dashboard

Water & Gas

  • Fresh & waste water tank gauge
  • Pressurised water system

Electrical & Gas Features

  • Analogue control panel, with the ability to monitor the vehicle remotely
  • Ambient concealed LED over locker lighting
  • 12v under locker LED reading lights
  • 230v sockets
  • Engine battery and leisure battery condition indicator
  • Transformer/charger/RCD unit
  • Combi 4KW Gas, 230V heater/hot water, 12v blown air, including a digital control panel
  • Auto-Trail ‘Connect’, a Thatcham category 7 approved tracking subscription. To be purchased through the ‘’ website

Insulation & Strength

  • Warranties (T&C’s Apply)
    • 5 Year warranty for conversion
    • 5 Year body construction integrity warranty
    • 2 Year warranty for Fiat chassis
  • Grade 3 insulation
  • Full vinyl underfloor protection
  • Laminated Construction
    • Wall construction measuring at full thickness of 40mm
    • Floor construction measuring at full thickness of 45mm
    • Roof construction measuring at full thickness of 40mm

Exterior Style & Features

  • Gloss black front grille, with lower skid plate and headlights
  • GRP High Gloss
    • Aerodynamic over cab roof moulding
    • Scratch/damage resistant side walls
  • Fix and go tyre repair kit
  • Acrylic capped ABS side skirts
  • Colour coded front bumper
  • 16” alloy wheels
  • Front and rear mud flaps
  • Integral moulded entrance step with removable mat
  • Electrically operated step
  • High security entrance door with blind, waste bin, fly screen and Auto-Trail umbrella with storage
  • Habitation door central locking
  • Adjustable, electrically operated heated exterior mirrors with blind spot mirror
  • Electrically operated cab windows
  • External gas BBQ point
  • Roof styling bars (not load bearing)

Storage & Access

  • Exterior storage / access locker

External Lighting

  • Daytime running lights (DRL’s) to headlamps
  • LED Lighting
    • Exterior awning light
    • Front marker lights
    • Rear marker lights
  • Side running lights
  • 3rd high level brake light


  • 1x Leisure battery at 100AH
  • 100w solar panel

Visibility & Ventilation

  • Double glazed windows with pleated fly screens and blinds
  • Panoramic roof light
  • 12v 3-speed roof fan / ventilator


  • Cruise control with speed limiter
  • ABS braking with disc brakes to front and rear
  • Central locking to Fiat cab
  • Engine immobiliser for Fiat
  • ECWVTA compliance to all relevant EU standards
  • National Caravan Council Approved
  • Flame failure shut-off valves to all gas appliance
  • Isolation taps to all gas appliances
  • Smoke alarm / C02 alarm
  • Fire extinguisher

Upgrades Fitted

  • Half dinette with two forward facing seat belts
  • Media Pack
    • 19.5” Avtex wide screen Smart TV
    • 8” touch screen dashboard head unit featuring;
      • Western European ‘motorhome specific’ satellite navigation system
      • Digital radio with integrated DAB+ tuner
      • Bluetooth hands-free system with integrated microphone
      • Selectable rear camera view when driving forwards
    • Colour reversing camera, integrated into colour touch screen display
    • Steering wheel radio controls
    • Television aerial
